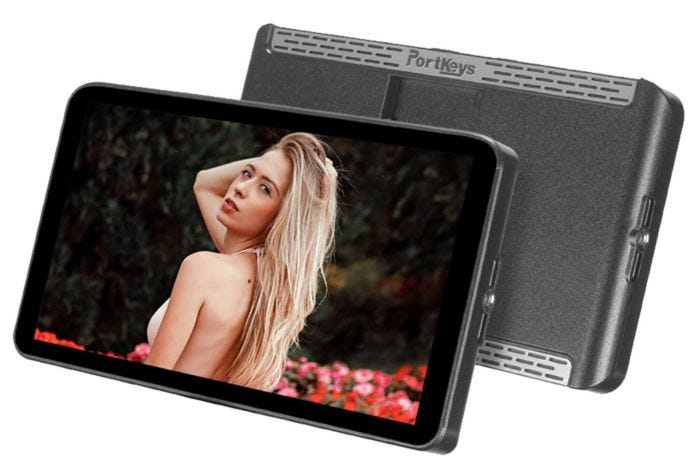

Portkeys LH7P 7″ High Brightness Touchscreen Monitor
Availability:In stock
Cat No.
52396
SKU
PK-LH7P
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£398.40
£332.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Portkeys LH7P 7″ High Brightness Touchscreen Monitor
WIFI Wireless Touch Control Cameras
Built-in Wireless Module, Video Real-Time Eyes Focus
*wireless control does not mean wireless video transmission,a video signal cable still needs to be connected during video transmission
Bluetooth Wireless Control of the Camera
Wireless Control of BMPCC cameras
*wireless control does not mean wireless video transmission,a video signal cable still needs to be connected during video transmission
Custom JPG Picture Custom Freeze Frame
After capturing an image, it can be compared with real-time video by semi-transparent image superposition Note: Must be a 16:9 1920×1080 jpg image
3D LUT Output
Customized 3D LUT，reproduce the movie style
Vertical Shooting Stretches Legs and HDMI Output
Controllable stretching of the images, Real-time monitoring the stretch effects, Stretched legs can be loaded with 3DLUT output from HDMI at 1080P60
Make All 4K Cameras Have Supersample
Supports 4K oversampling to 1080p, resulting in high resolution, high detail 1080p video
Anamorphic Lens Correction 1080P60 HDMI Output
Supported Ratio: 1.00X/1.33X/1.42X/1.50X/1.60X/1.66X/
1.85X/2.00X/2.35X
User-defined adjustment range: 0.25X-4.00X
Brightness and RGB Signal Detection Before/After Loading 3D LUT
Loading 3D LUTs for better picture quality and more intuitive monitoring
Custom Rectangular Image Crop
Easily and clearly monitor the details of your images
Brightness and RGB Signal Detection Before/After Loading 3D LUT
Loading 3D LUTs for better picture quality and more intuitive monitoring
Customized Peaking Range(Peaking Frame)
New Peaking New Algorithm More intuitive More accurate
Video Screen Showing Camera Parameters
Perfect solution to the problem that some camera video screens have no camera parameters
Key Features:
- Wireless Control BMPCC 4K/6K/6K Pro, Sony Cameras.
- Custom JPG Picture Custom Freeze Frame.
- Make All 4K Cameras Have Supersample.
- Brightness and RGB Signal Detection Before/After Loading 3D LUT.
- Custom Rectangular Image Crop, Customized Peaking Range(Peaking Frame) Anamorphic Lens
- Correction 1080P60 HDMI Output, Vertical Shooting Stretches Legs and HDMI Output, 3D LUT Output.
- Wireless Control BMPCC 4K/6K/6K Pro, Sony Cameras.
- Custom JPG Picture Custom Freeze Frame.
- Make All 4K Cameras Have Supersample.
| Basic Parameters | ||
| Screen Size | 7" | |
| Colour Gamut | Rec.709 | |
| Resolution | 1920 x 1080 | |
| Viewing Angle | 85/85/85/85 | |
| Dimension | 176.2 x 103.8 x 18.4mm | |
| Material | PC+ABS | |
| Contrast Ratio | 1000:1 | |
| Weight | 235g | |
| Brightness | 1000nit | |
| Fan | Yes | |
| Maximum Power | 9W | |
| Input Voltage | 7-24V | |
| Software Function |
||
| *3D LUT | New Peaking | Peaking Frame |
| RGB Waveform | Anamorphic | Luma Waveform |
| Peaking | Luma Histogram | ARRI False Colour |
| Guides | False Colour | Zebra |
| Cross Hair | Check Field | HDR(HLG) |
| Grids | Touch Screen | Custom RGB |
| Audio Meters | Backlight | Battery Voltage Checking |
| Brightness | Tint | Contrast |
| Colour Temterature | Chroma | Display Flip |
| Sharpness | Rectangle Crop | Wireless Control Camera |
| 3D LUT Output | Custom Fan | Camera Recording |
| Vertical Extension | ||
| * Monitor does not have 3D LUT storage,3D LUT must be stored and loaded via USB stick | ||
| Interface | ||
| Video Input/Output | Input Interface:4K30p HDMI Output Interface:1080p60 HDMI |
|
| Support Battery Model | Sony NP-F970/F960/F750/F550 | |
| Power Input | 7-24V | |
| USB-A | Upgrade Firmware/Load 3D LUT/5V2A Charger Input Power Supply |
|
| Audio Output | 3.5mm Headphone Jack | |
| HDMI Output Function | 3D LUT Output Anamorphic lens calibration Output UI Output |
|
| HDMI Input Signal | 4096x2160p@24Hz 3840×2160p@23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz 1920x1080p@23.97Hz,24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz,60Hz 1920×1080psf@23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz 1920x1080i@50Hz, 59.94 Hz, 60Hz 1280x720p@50Hz, 59.94Hz, 60Hz 720x576p@50Hz 720x576i@50Hz 720×480p@50Hz, 59.94Hz, 60Hz 720×480i@50Hz, 59.94Hz, 60Hz |
|
| HDMI Output Signal | 1920×1080p@60Hz | |
