Product Information
OseeT5+ 5.5inch 1000nits 4K HDMI On-Camera Monitor Kit
T5+ is the new upgraded version of osee's most popular model T5 with a brand new daylight viewable 1000nits panel. Making it suitable for both studio and outdoor videography.
What's more, with a contrast ratio of 1000:1 and osee's LOG/HDR processing technology, HDR realtime monitoring is not a problem anymore. Users can shoot HDR format and the monitor will help transform it into a standard image to monitor right in the field.
This monitor only weighs 175g without battery and has a size similar with your phone. With a plastic ABS polycarbonate shell and a built-in aluminum sheet, it is not only light but also quite sturdy as well. It also has two metal 1/4'' metal screw holes with anti-rotation pin holes, you can attach it on your camera, gimbal, cage... You can fit it into all kinds of setups without loose.
T5+ features the first generation of osee's MON OS, a convenient page style user interface that allows you to add up to 8 MySets, and up to 8 different image assist tools can be added in each MySet. When monitoring on location, users can switch between MySets to check different things at ease with simple toggles.

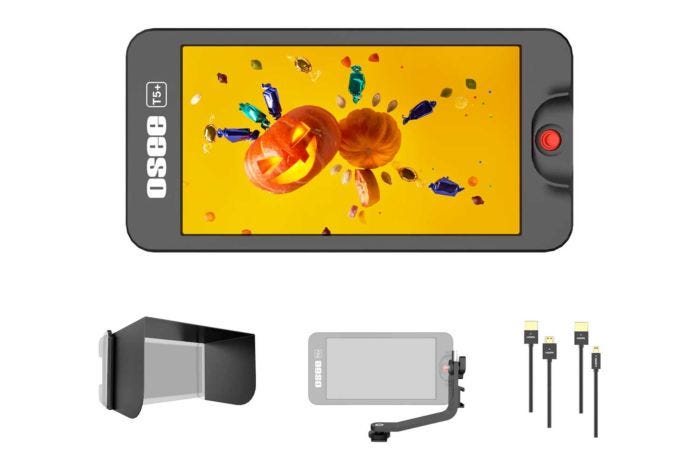

- T5+ Monitor
- Tilt Arm
- Sun Hood
- HDMI-Micro Cable(30cm), HDMI-mini Cable(30cm)
| Display | |
|---|---|
| Panel Size | 5.5inch |
| Aspect Ratio | 16:9 |
| Resolution | 1920x1080 |
| PPI | 400 |
| Brightness | 1000nits |
| Contrast | 1000:1 |
| Color Depth | 1.06G |
| Backlight | Edge lit |
| Viewing Angle | 160x160 |
| Environmental | |
| Body | Polycarbonate ABS plastic (with aluminum sheet built-in) |
| Weight | 175g |
| Dimensions | 157.5mmx79mmx20mm |
| Mounting Points | 1/4”-20 anti-rotation screw mount, 1x bottom and 1x right |
| Operating Temp | 0-40℃ |
| Power | |
| Battery Type | Sony NP-F/Canon LP-E6 |
| Battery In | 5-17V |
| Type-C In | 5-17V |
| Battery Out | 5-8.4V |
| Consumption | 5.5W |
| Data I/O | |
| Signal Input | HDMI 1.4 |
| Signal Format | 3840x2160p(30/29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 720p(60/59.94/50) 480i/576i/480p/576p |
| SD Card Slot | User LUT Upload&Firmware Upgrade (FAT32 format and under 16G size recommended) |
| Audio Jack | 3.5mm |
| Remote Jack | 2.5mm |
| Control | |
| Backlight | Level 1-10 |
| Volume | Level 0-31 |
| Rotate/Mirror | Rotate (0, 180, auto), Mirror |
| Probe Location | Set this to let exposure tools analyze before or after User LUT |
| Frame Tools | |
| Aspect | 9:16 (Phone), 4:5, 1:1, 4:3 (SD TV), 1.375:1 (Cinema), 16:9 (HD TV), 1.85:1 (Cinema), 2.37:1 (Cinema), custom(1:3 - 3:1) |
| Safe | Action&Title |
| Center | Cross/Hollow |
| Crosshatch | 2x2, 3x3 ... 9x9 |
| Anamorphic | 1.33X, 1.4X, 1.5X, 1.6X, 1.8X, 1.9X, 2X with magnify function |
| Exposure Tools | |
| False Color | Spectrum/Follow camera/Custom |
| Zebra | Custom tone 1 and tone 2 |
| Waveform | Luma/RGB/Parade style, location, opacity&density adjustable |
| Histogram | Luma/RGB style, location, opacity&density adjustable |
| Vector Scope | Location, opacity&gain adjustable |
| Focus Tools | |
| Focus Assist | White, Red, Green, Blue，B&W background available |
| Peaking | Intensity 1-10 |
| Look Tools | |
| De-log | HLG, PQ, Arri, BMD, Canon, Fuji, JVC, Nikon, Panasonic, RED, Sony |
| User LUT | Up to 10 user LUTs can be uploaded, support LUT intensity adjustment |
| Audio Tools | |
| Audio Meter | Location&opacity adjustable |
| Analysis Tools | |
| Multi-scopes | Waveform, histogram, vector scope and audio meter around scaled image |
