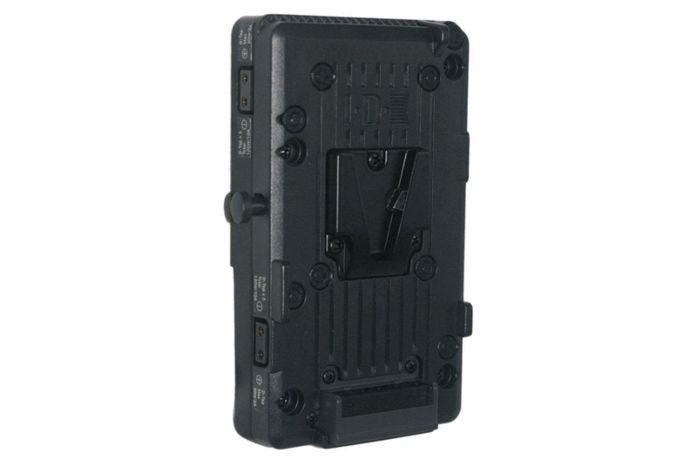

IDX MD-NBV ENDURA V-Mount Plate with Multiple D-Taps

IDX MD-NBV ENDURA V-Mount Plate with Multiple D-Taps

Designed to be sandwiched between a V-Mount camera and battery or mounted on a V-Dock, the MD-NBV, has five (5) D-Taps and allows you to power accessories such as onboard monitors, lights, wireless receivers, media recorders, signal converters, etc. Max draw from each D-Tap is 30W/2A (each D-Tap independently fused), and total Max draw is 120W/10A.

• Multiple D-Taps
• Total Max draw - 120W/10A

MD-NBV Specs:
Max. D-Tap Output:
30W/2A
Dimensions:
3.65"(W) x 5.63"(H) x 1.08"(D)inches
Weight:
0.7 lbs approx
