IDX IMICRO-150 Micro V-Mount Battery Pack

Availability:In stock
Cat No.
37834
SKU
IMICRO-150
IDX

3 in stock for Immediate Dispatch

£343.20 £286.00
- +
  • Free UK Delivery

    Free UK Delivery

    On orders over £250

  • Price Match

    Price Match

    Request here

Product Information

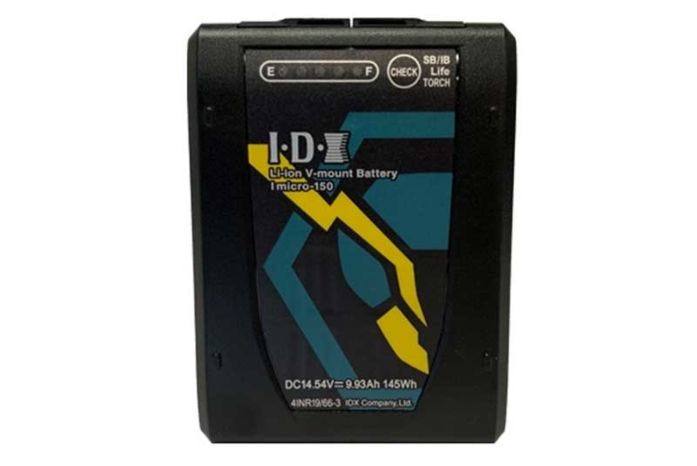

MICRO-150 Micro V-Mount Battery Pack

The Imicro-150 is the smallest battery pack in the world at this capacity. Rated at 145Wh, the Imicro-150 meets the passenger aircraft carry-on limit while remaining useful in many diverse applications. The Imicro’s size is beneficial for users with small equipment and gimbal set ups. The Imicro-150 also includes two on-battery D-Tap outputs. Future accessories will make the Imicro Series your new go-to setup.

Features:

  • 145Wh capacity
  • Meets passenger aircraft travel regulations
  • Capable of handling up to 14A loads‡
  • (1) 100W D-Tap Advanced Output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
  • (1) 100W D-Tap Output (unregulated)
  • 5 Power Indicator LEDs (displaying 10% increments)
  • Battery circuit protection ensures the Imicro-150 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
  • The highest grade Lithium Ion cells are used to ensure the Imicro-150 is one of the most reliable batteries on the market
  • 11V auto cut-off prevents over-discharging (while load is applied)
  • Fully compatible with all ENDURA V-Mount Battery chargers and accessories.
  • Environmentally friendly and recyclable

‡ may vary depending on the operating temperature

  • 145Wh capacity
  • Meets passenger aircraft travel regulations
  • Capable of handling up to 14A loads‡
Battery Capacity145Wh (14.4V/ 9.9Ah)
Maximum Output Voltage16.8V DC
Nominal Voltage14.5V DC
Maximum Discharge Current14A‡
D-Tap100W each
End Voltage11V
Battery ProtectionOver charge, Over discharge, Over current, Thermal protection
Ambient TemperatureTo charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (less than one month)
Dimensions72(W) x 97(H) x 69(D) mm
Weight762 grams approx.
