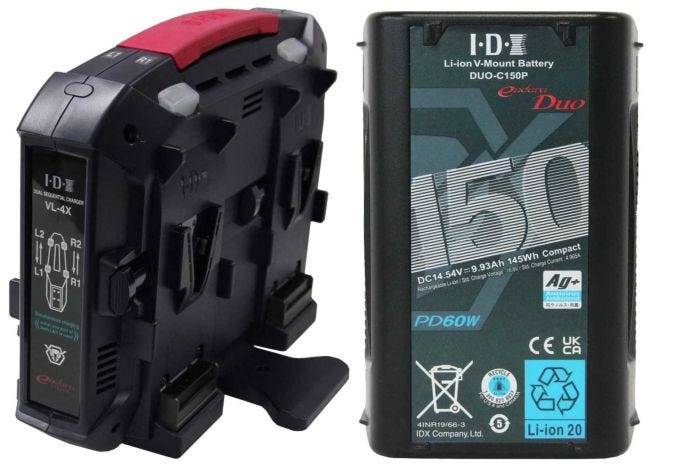

IDX ED-CP150/4X DUO-C150P Batteries and VL-4X Charger Kit

Availability:In stock
Cat No.
49837
SKU
ED-CP150/4X
IDX

Order Now - Usually available to despatch in 2-3 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£1,784.40 £1,487.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

IDX ED-CP150/4X System Technology 145Wh High-Load Li-Ion V-Mount Battery

The DUO-C150P is the ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With 145Wh capacity, the DUO-C150P meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C150P also includes two on-battery D-Taps and USB-C PD connector to charge battery and power accessories such as monitors, lights, wireless receivers, tablets, phones and  more!

Key Features

  • FEATURES 145Wh capacity
  • Meets passenger aircraft travel regulations
  • Capable of handling up to 14A loads ‡
  • (1) 80W/4.7A D-Tap Advanced Output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
  • (1) 80W/4.7A D-Tap Output (unregulated)
  • (1) USB-C PD max. input/output 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A)  (auto shut off after 30 minutes of inactivity)
  • Battery can be charged from USB-C using affordable charger (UC-PD1)
  • 5 Power Indicator LEDs (displaying 10% increments)
  • Battery circuit protection ensures the DUO-C150P is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
  • The highest grade Lithium Ion cells are used to ensure the DUO-C150P is one of the most reliable batteries on the market
  • 11V auto cut-off prevents over-discharging (while load is applied)
  • Fully compatible with all ENDURA V-Mount Battery chargers and accessories
  • Environmentally friendly and recyclable
  • Antiviral and antimicrobial body for peach of mind

IDX VL-4X 4-Channel V-Mount Charger with Power Supply

The VL-4X is a slim, lightweight, affordable 4-channel charger. Dual Simultaneous/Sequential feature charges up to 4 batteries total with any 2 simultaneously. The included AC adapter doubles as a 90W DC power supply.

Key Features:

  • 4 channel Dual Simultaneous/Sequential Charger. (The batteries are charged simultaneously when installed on opposite sides. Also, the batteries are charged sequentially when installed on the same side.)
  • Included AC adapter can also be used as a 90W (15V, 6A) DC power supply.
  • Compact, lightweight, and travel friendly (under 2.5lbs)
  • Advanced fanless design
  • Integrated locking support stand
  • Internal safety features protect both the battery and charger from serious damage should faulty or misused batteries be placed on charge. The VL-4X will automatically stop charging should any battery reach an over voltage condition.
  • Power Base mode not supported
  • Included AC adapter can also be used as a 90W (15V, 6A) DC power supply.
  • Compact, lightweight, and travel friendly (under 2.5lbs)
  • Integrated locking support stand
  • 11V auto cut-off prevents over-discharging (while load is applied)
  • Environmentally friendly and recyclable
  • Antiviral and antimicrobial body for peach of mind
  • 4 x DUO-C150P Batteries
  • 1 x VL-4X Charger, with 4 pin XLR DC output (90W)
DUO-C150P Batteries
Battery Capacity 145Wh (14.54V/ 9.93Ah)
Max.Output Voltage 16.8V DC
Nominal Voltage 14.54V DC
Maximum Discharge Current 14A ‡
D-Tap 80W each
USB max. 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A)
End Voltage 11V
Battery Protection Reverse charge, Over charge, Over discharge, Over current, Temperature protection
Ambient Temperature To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (one month)
Dimensions 95(W)x146(H)x59(D)mm
Weight 900 grams approx.
VL-4X 4-Channel V-Mount Charger
Input Voltage AC 100-240V 50/60Hz
Power Consumption 220VA max.
Quick Charge Current 2.7A max.
DC Output 90W (via included AC adapter)
Operating Temperature -5°C ~ 40°C
Dimensions 90.5(W) x 177(H) x 250(D) mm
Weight (charger body) 1100 grams approx.
Weight (AC adapter) 450 grams approx.
