Product Information
IDX C-ZLPRO Cine Servo DC Cable
For Canon Cine Cameras
C-ZLPRO has been created to fulfill the demand for a means to power Canon’s CINE-SERVO zoom lenses with cameras that would otherwise not have the ability– due to lacking a DC power supply to the lens. The C-ZLPRO has a D-Tap plug to HR10 10J- 12S connector and is 12.5” long. It allows 12- 17V DC to be supplied either directly from batteries such as the ENDURA DUO or CUE series, or from the D-Tap output from IDX ENDURA VMount plates.
Key Features -
- Provides DC power via D-Tap to Canon’s CINE-SERVO lens
- 320mm in length provides sufficient length without being cumbersome
- Compatible with all IDX D-Tap (12-17VDC) ports
- Provides DC power via D-Tap to Canon’s CINE-SERVO lens
- 320mm in length provides sufficient length without being cumbersome
- Compatible with all IDX D-Tap (12-17VDC) ports

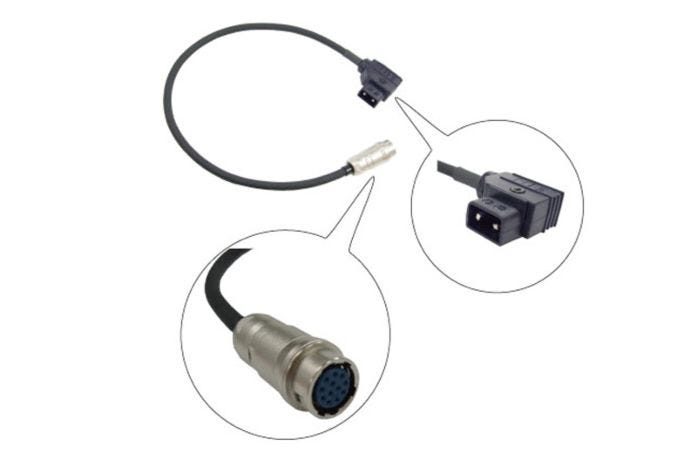

Cable assembly:
D-Tap Plug (50W max)
Hirose HR10-10J12S (2A Max)
DC Output:
Hirose: 2A
Pin 3: (-)
Pin 6: (+)
Cable Length: 320 mm
