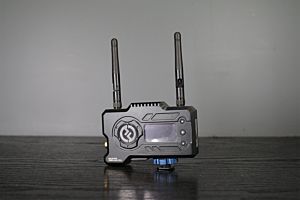

The Mars 400S is an entry-level 1080p60 transmission video system featuring a 400' line-of-sight transmission range.
With a compact design, both transmitter and receiver support SDI and HDMI connections. The choice between the two expands your compatibility options.
The receiver provides HDMI and SDI outputs to your monitoring equipment and features extremely low 0.1s latency with line-of-sight transmission up to 400' to the receiver.
For a strong line-of-sight signal, the receiver includes two external antennas and one is included as a spare.
The Mars 400S PRO transmitter can simultaneously transmit video to up to two receivers.
Key Features:
Wireless Range | 400' / 121.92 m (Line-of-Sight) |
---|---|
Channel Bandwidth | 20 MHz |
Frequency Range | US: 5 GHz |
Latency | 0.1 sec |
RF Sensitivity | -80 dBm |
Antenna Ports | 2 x RP-SMA Male |
Video Connectors | 1 x BNC (3G-SDI) Output 1 x HDMI Output |
Other I/O | 1 x USB Type-C Input |
Embedded Audio | HDMI/SDI |
Wi-Fi | Yes |
Video Format | SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94, 60 fps 1080PsF at 23.98, 24, 25 fps 720p at 50, 59.94, 60 fps HDMI: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94, 60 fps 720p at 50, 59.94, 60 fps 576p at 50 fps 480p at 60 fps |
Panel Type | OLED |
