FX LION 28V / 1232Wh Mega Battery
Availability:In stock
Cat No.
45577
SKU
FX-HP-7224 PLUS
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£1,880.03
£1,566.69
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

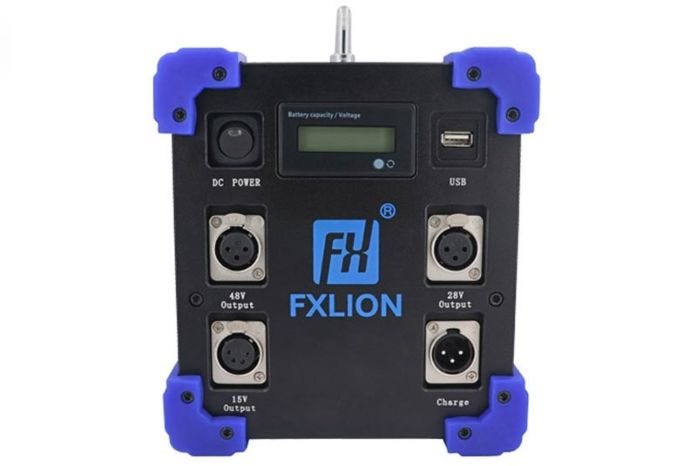

FX LION 28V / 1232Wh Mega Battery
This Mega Battery uses high power li-ion cells for electric vehicles, which has super-high discharging current. Its low-temperature performance is much better than that of ordinary li-ion batteries. It has 60% capacity available in the low temperature environment of -30°C, which is much more higher than that of ordinary li-ion batteries. The battery output current is up to 40A(Max.), which can provide portable ultra-high power for high-power film equipment. With high-power protection chip, it has overcharge /over-discharge/over-heat/over-current protection.
With two 28V Outputs and one 15V Output and1232Wh, double the capacity of the 620Wh model, this gives you a lot of power storage. Get a maximum of 40 Amps out of both 28V Outputs and 8 Amps out of the 15V Output. The indicator LCD shows you the status of the battery. For charging, use the PL-7115 charger to charge your battery in 10.5 hours.
Key Features:
- Extra thick rubber sheath-more suitable for shooting on-site
- Working temperature: – 30 ° C ~ +55 ° C
- All Outputs can be used simultaneously
- Suitable for High power LED lights and any other suitable film equipment.
- All Outputs can be used simultaneously
- Extra thick rubber sheath
| Model | FX-HP-7224 PLUS |
|---|---|
| Capacity | 1230Wh / 47.6Ah |
| Input | PL-7115 Charger (29.4VDC / 5A) |
| Output | CH1 + CH2: 28V /40A (max.) CH3: 15V / 8A USB-A: 5V / 2A |
| Weight | 8900g |
| Dimension | 240(L)mm×168(W)mm×186.5(H)mm |
| 28V Outputs | 3-Pin XLR-female socket |
| 15V Output | 4-Pin XLR-female socket |
| Charging Input | -3-Pin XLR-male socket |
