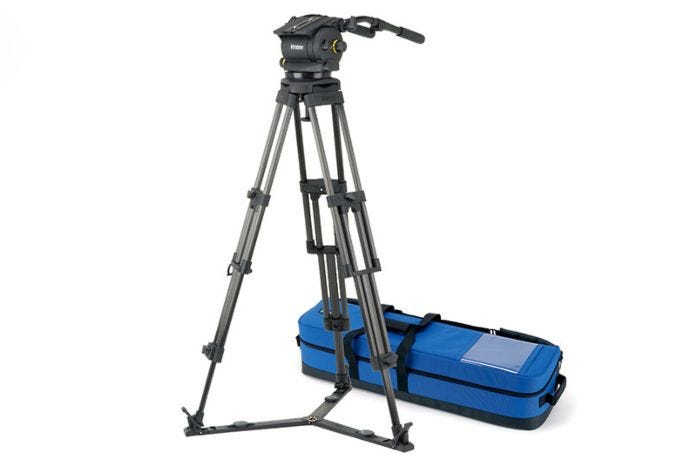

Vinten VISION 250 Carbon Fiber Tripod System with Ground Spreader

The Vinten VISION 250 Carbon Fiber Tripod System includes the Vision 250 fluid head, which features Vinten's "twin balancing mechanism" that allows you to find the ideal balance with payloads up to 73 lb.

The head incorporates a drag mechanism employing non-contacting thin film technology, which ensures consistent drag and constant performance over a wide temperature range. Also included is the Vision EFP two-stage tripod with a 150mm-bowl. It is constructed of carbon fiber and has many useful features such as the precision-engineered Pozi-Loc leg clamping system.

Vinten VISION 250 HD Fluid Head (100mm/150mm Ball Base) (Black)
The VISION 250 pan & tilt head is designed to support the latest portable digital camera combinations used in Studio and Outside Broadcast production. With its unique "twin balancing mechanism" the Vision 250 can be fully adjusted to perfectly balance any camera or any lens combination -- either weighing up to 72.8 lb -- quickly and easily. The VISION incorporates a drag mechanism employing non-contacting thin film technology, which ensures consistent drag and constant performance over a temperature range from -40°F to +140°F. TF drag allows for fine adjustment of drag levels as well as whip pan movement without any manual reduction of the drag.

In addition, the Vision 250 also has the benefit of digital counterbalance readout, backlit drag controls and an illuminated leveling bubble, giving the cameraman the quickest and most simple set-up, even in "low light" situations.

Perfect Balance
The Vision 250 pan & tilt head achieves the Perfect Counter Balance by means of an innovative and patented infinitely-variable spring mechanism. This allows the head to tilt through the full range of ±90° in perfect balance, eliminating a considerable amount of physical effort required by the operator to control the tilting action. Since the camera is perfectly balanced, it can be left at any angle - totally hands free - without having to lock the tilt brake. The variable counterbalance mechanism allows it to be used with a variety of lenses, batteries, viewfinders and on-camera lights.

For even faster setup, the Vision 250 offers a digital counterbalance readout, with repeatable balance setting. The display is activated by a simple press of a button and remains visible for 15 seconds.

TF (Thin Film) Drag Control
The Vision 250 uses the Vinten TF (Thin Film) damping system, to provide consistent drag and constant performance in demanding conditions from -40°F to +140°F. The TF system offers total control for precise movement and excellent camera control during the critical slow start-up of your shot, providing seamless transition into Whip Pan and instant recovery to the original drag setting at the finish of the movement.

Calibrated with variable adjustment and a single turn rotation from fully On to Off, the drag knobs are backlit and are adjusted accordingly (depending on the lighting conditions) by a light sensor built into the digital readout.

Interlock Device
The interlock device is positive latching and thus overrides the tilt brake to insure that any load doesn't move in its fixed position. And the tilt brake therefore doesn't wear out prematurely.

Quick Setup
Unique design features allow fast setup -- a must if you are continuously on the move. The leveling bowl has a double threaded screw shank, which allows the bowl lock to be tightened and released quickly -- very handy when you are constantly adjusting the bowl to level the camera (especially on uneven terrain).

• Adjustable camera mounting plate with unique rubber grip strips holds the camera rock steady.
• Load capacity of up to 72.8 lb

Vinten 3880-3 EFP Carbon Fiber Tripod Legs
Vision EFP tripods are precision-engineered with single or two-stage legs, and made of aluminum alloy or carbon fiber material. Offers a 150mm-bowl fixing, attached to an innovative hip joint that eliminates play and gives more rigidity to provide an exceptionally stable camera platform. With unrivalled height range capability and Pozi-Loc leg clamping system, these lightweight, compact tripods are quick and easy to set up and provide excellent operational flexibility.

Carbon Fiber Construction
Constructed of strong carbon fiber, to provide the sturdiest and most durable material for demanding applications.

Smooth Camera Movement
Tripod rigidity is a vital factor in achieving smooth camera movement and first class picture quality. The Vision range of tripods are unique in giving maximum torsional rigidity throughout the height range by combining a "perfect" triangular structure with the most innovative design features.

Pozi-Loc Leg Clamps
The new Pozi-Loc is Vinten's innovative cam-operated clamping system, ensures tripod reliability and safety and its positive action shows clearly when the tripod is locked.

• 150mm / 6" bowl base
• Double extension design
• Maximum height of 63.0-inch
• Supports up to 99.2 lb.
• Spring Loaded Transport Clip, keeps the legs together while in transport

Vinten 3363-3 On-Ground Tripod Spreader (Black)
Lightweight Spreaders provide greater stability to Vision tripods. Their flexibility means that they can cope with uneven terrain and their hinged construction enables them to fold with the tripod. Quick-release straps ensure that they can be easily installed or removed if required.

Vinten 3341-3 Soft Tripod Cases
The Vinten 3341-3 Soft Tripod Case is a padded tripod bag made to carry a Vinten Vision 250 + EFP tripod system. It has interior and exterior pockets for documents and tripod accessories. It has multiple handles and a padded adjustable shoulder strap.

• Durable weather-resistant soft padded tripod bag.
• Polycarbonate rigid board with 5mm foam offers all-around cushioning combined with rigid support.
• Double extra-large zip fobs and full length zip for ease of access.

Pockets;

• Large clear external pocket for document storage
• Fully zipped internal pockets for storage of pan bars, camera plates and other accessories
• Touch fastener pocket for operation guides.
• Captive basic head balance instructions.

Carrying options;

• Pair of handles with a touch fastener comfort grip wrap positioned to balance the system.
• Lightly padded handle at each end.
• Adjustable shoulder strap with non-slip positional pad

Compatible with;

• Vinten Vision 250 + EFP tripod systems

Key Features:

• Vision 250 Head, Dual 100mm/150mm Base
• Carbon Fiber Tripod, 150mm Bowl
• Weather-Resistant Soft Padded Carry Case
• Twin Balancing Mechanism / Ideal Balance
• 73 lb Payload
• 22 to 73 lb Counterbalance Range
• Non-Contacting Thin Film Drag
• 20 to 62" Height Range
• Ground Spreader

• Vision 250 Head, Dual 100mm/150mm Base
• Carbon Fiber Tripod, 150mm Bowl
• Weather-Resistant Soft Padded Carry Case
• Twin Balancing Mechanism / Ideal Balance
• 73 lb Payload
• 22 to 73 lb Counterbalance Range
• Non-Contacting Thin Film Drag
• 20 to 62" Height Range
• Ground Spreader

Vinten VISION 250 Carbon Fiber Tripod System with Ground Spreader

• VISION 250 HD Fluid Head (100mm/150mm Ball Base) (Black)
• • 1x Telescopic Pan Bar (Black) (#3219-91)
  • Camera Mounting Plate (#3364-900SP)
• 3219-91 Telescopic Pan Bar with Clamp (Black)
• 3881-3 EFP Carbon Fiber 2-Stage Pozi-Loc Tripod Legs (150mm Bowl) - Supports 99.2 lbs
• 3363-3 Lightweight Calibrated On-Ground Tripod Spreader (Black)
• 3341-3 Soft Padded Tripod Case - for Vinten Vision 250 + EFP Tripod Systems

Vinten VISION 250 HD Fluid Head (100mm/150mm Ball Base) (Black)
Load Capacity: 72.8 lb
Diameter/Thread: Dual 100mm 4"/ 150mm 6" Half Ball
Counter Balance System: Infinitely-Variable Spring Mechanism
Counter Balance Range: 22 to 72.8 lb
Center of Gravity: 5" Typical
Quick Release/Wedge Plate: Yes (Cat #3364-900SP)
Balance Plate: 2-Way 4" Sliding Range, with 2x 3/8" Screw
Tilt Drag: Infinitely Variable, 0 to 9
Tilt Range: ±90°
Tilt Lock: Flick On/Off Locks
Spring Loaded Counter Balance: Infinitely Variable, 0 to 9
Pan Range: 360°
Pan Lock: Flick On/Off Locks
Leveling Bubble/Illuminated: Yes / Illuminated
Temperature Range: -40° to +140°F (-40° to +60°C)
Weight: 13.5 lb

Vinten 3880-3 EFP Carbon Fiber Tripod Legs
Material: Carbon Fiber
Load Capacity: 99.2 lb
Bowl Diameter/Thread: 150mm 6" Half Bowl
Minimum Height: 20.5"
Maximum Height: 61.9"
Leg Stages/Sections: 2/3
Leg Lock Type: Pozi-Loc
Center Brace/Mid-Level Spreader: No
Spiked/Retractable Feet: Spiked
Folded/Transport Length: 29.9"
Weight: 12.1 lb
Other: Spreader Required

Vinten 3363-3 On-Ground Tripod Spreader (Black)
Construction: Plastic/Rubber
Type: On-Ground
Adjustable: Yes
Minimum Length: 15.0"
Maximum Length: 22.5"
Weight: 1.5 lbs

Vinten 3341-3 Soft Tripod Cases
Material:

• Exterior: Blue fabric is 1000 denier texturized Nylon
• Exterior: Black base fabric is textured rubberized polyester
• Interior: 600 denier ripstop polyester
• Interior: Padding sandwich of 15mm foam
• Interior: Polycarbonate rigid board with 5mm foam

Type of Closure:

• Full length heavy duty 10mm spiral zipper
• Double extra large zip fobs

Interior Dimensions: 38.58 x 12.2 x 10.24" (98 x 31 x 26 cm) (LxWxH)
Accommodates: Vinten Vision 250 + EFP tripod systems
Padded: Yes
Carrying/Transport Options:

• Adjustable shoulder strap with non-slip positional pad
• Pair of handles with a touch fastener comfort grip wrap
• Lightly padded handle at each end.

Weight: 9.83 lb (4.46 kg)
