Vinten Vector 750i Tripod Head
Availability:In stock
Cat No.
22384
SKU
V4080-0001
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£19,434.00
£16,195.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

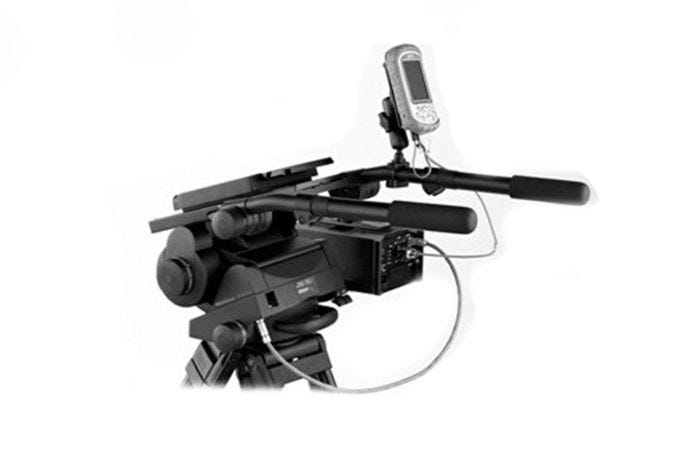

Vinten Vector 750i Tripod Head
The Vector 750i is the perfect solution for virtual reality in both studio and outside broadcast for operators.
The Intelligence Module allows semi automatic set-up, slide plate tracking and kinematic compensation. When combined with the VRI box, it provides the most precise positioning data possible from a pantographic head, to ensure stable and accurate placement of virtual graphics into the live environment.
The Vector 750i maintains all of the market leading functionality of the Vector 750, making this pan and tilt head an ideal choice for large camera combinations where virtual or augmented reality is required.
- The market leading Vector 750 with virtual reality capability
- Unprecedented positional accuracy for an encoded pantographic head
- Unique slide plate and balance mechanism position measurement for mid-broadcast camera adjustments
Virtual Reality Interface Box
The VRI box enables the use of the Vector 430i, 750i, and 950i pan and tilt heads in virtual reality applications. The box processes the positional data from the head encoders and also offers a direct interface to lenses with encoder outputs (or bolt on lens encoders) to provide a single data stream to the graphics rendering system. Each VRI box is supplied with mounting brackets, GUI, and head interface cable.
Key Features:
- Small & lightweight
- Semi automatic set-up
- Unique slide plate and balance mechanism
- Ideal choice for large camera set-ups
- Unprecedented positional accuracy
- Allows for kinematic compensation
- Small & lightweight
- Semi automatic set-up
- Unique slide plate and balance mechanism
- Ideal choice for large camera set-ups
- Unprecedented positional accuracy
- Allows for kinematic compensation
- Vinten Vector 750i Tripod Head
| Height | 25.5 cm / 10 “ |
| Length | 35.5 cm / 14 “ |
| Width | 35 cm / 13.5 “ |
| Weight | 17.9 kg / 39.5 lbs *including wedge adaptor & pan bar |
| Capacity Range | 75 kg / 165.3 lbs |
| Tilt Range @ 75 kg / 165.3 lbs | ±52˚ |
| Pan Resolution | 1.8 million counts per 360° |
| Tilt Resolution | 1.6 million counts per 360° |
| Encoder Power Requirements | 5 volts dc ± 10% |
| Platform Adjustment | +5.5 to -12.5 cm / +2.2 to -4.9 “ |
| Pan Bar | Single telescopic |
| Camera Fixing | EFP Quickfit Automatic Adaptor [3460-3] |
| Levelling Bubble | Illuminated |
| Drag Knobs | Calibrated |
| Counterbalance | Fully variable with digital readout |
| Base fixing | 4 bolt flat with Quickfix groove |
| Colour | Black |
| VRI Box | |
| Power In | 110-250v AC or 9-28v DC, power consumption 80 w |
| Power Out | 12v DC @ 1A / 24v DC @1A |
| I/O | Genlock ( 1 in, 2 out), Devicelink.i, Lens encoders (Quadrature) |
| Tracking Data Output | RS422, Radamec D1 packet |
