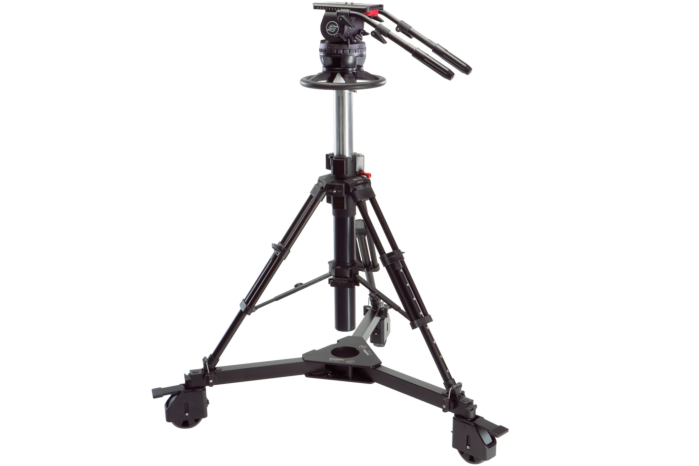

Sachtler 2570 SYSTEM 25 PLUS CIII Pedestal System
The Sachtler 2570 System 25 Plus CIII Pedestal is designed with today's camera person using HTDV and Widescreen cameras in mind.
The System 25 Plus Pedestal system consists of the, Video 25 Plus fluid head with its seven step, temperature-independent damping system. This head is matched with the CIII compact pedestal and Multi Disc for a complete package.
Video 25 Plus Fluid Head
Frictionless Leak Proof Fluid Damping
Frictionless leak proof fluid damping with seven levels of drag, for perfect pictures while panning, without jerks and vibrations. Identical across both horizontal and vertical planes, and allows complete disengagement of drag for fast panning.
Quick Release
Touch & Go Quick Release / Automatic Locking System, for quick set up without having to bother screwing the camera to head and then having to unscrew it again. Also features a safety lock lever that prevents inadvertent disengagement of the camera latch.
Sliding Balance Plate
Sliding camera mount and plate with a 4.4-inch sliding range, makes a fast balancing system for the camera and ensures perfect balance across the horizontal plane.
Dynamic Counterbalancing System
The 18 Step dynamic counterbalancing system, with 9-stage fine-tuning in half steps compensates for torques as the camera tilts. This prevents the camera from inadvertently tipping, and ensures that it is positioned securely at any tilt angle. These features can be activated and deactivated individually.
CIII Pedestal System
Air Pressurized Pneumatic Column
The pedestal is anchored by a pneumatic column. The system works on the principle of compressed air, which acts as a counterweight and allows for quick height adjustments. An air pressure gauge gives the user instant indication of correct pressure.
Silent Dolly Movement
Silent dolly movement is very important in a studio where sounds can easily carry into the production.
Set-Up
This pedestal offers a fast tool-free set-up for productions on the go.
Key Features:
- CIII Pedestal
- System 25 Plus Head
- Multi Disc
- 77 lbs Capacity
- CIII Pedestal
- System 25 Plus Head
- Multi Disc
- 77 lbs Capacity
Sachtler 2570 SYSTEM 25 PLUS CIII Pedestal System
- Video 25 Plus Fluid Head
- CIII Pedestal
- Multi Disc
| General | |
| Load Capacity | 18 to 77 lbs (8-35 kg) |
| Trim Ring | No |
| Bowl Diameter/Thread | Sachtler/Vinten Flat Base Fitting, 100mm Bowl |
| Steering Ring Diameter | 12" (300mm) |
| Minimum Height | 35.8" (91 cm) |
| Maximum Height | 69.3" (176 cm) |
| Levelling Bubble/Illuminated | Yes / Illuminated |
| Weight | 49.8 lbs (22.6 kg) |
| Head | |
| Balance Plate | Yes, 4.4" Sliding Range |
| Tilt Drag | Yes |
| Tilt Range | +90° to -75° |
| Tilt Lock | Yes |
| Spring Loaded Counter Balance | 8 steps, 0 to 7 |
| Pan Range | 360° |
| Pan Lock | Yes |
| Dolly | |
| Doorway Width | 39" (99cm) |
| Wheel Diameter | 6" (154mm) |
| Wheel Lock | Yes |
| Cable Guards | Yes |
| Weight | 36.4 lbs (16.5kg) |
