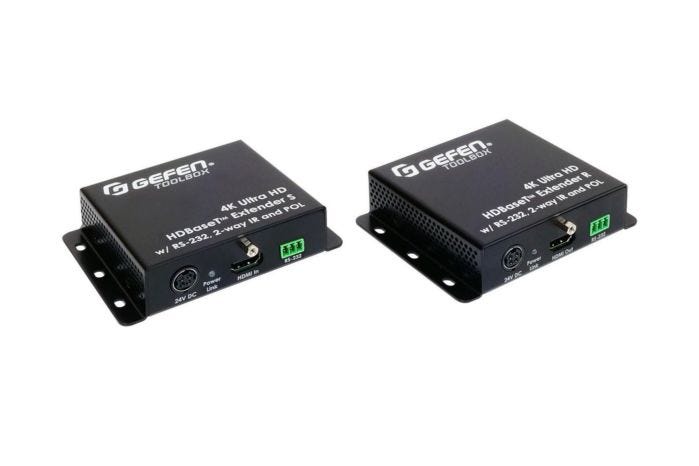

Gefen GTB-UHD-HBT 4K Ultra HD HDBaseT Extender w/RS-232, 2-way IR and POL

Gefen GTB-UHD-HBT 4K Ultra HD HDBaseT Extender w/RS-232, 2-way IR and POL

The GTB-UHD-HBT 4K Ultra HD Extender uses Gefen's implementation of the latest HDBaseT technology to extend HDMI up to 495 feet/150 meters at 1080p (8 bits) and up to 330 feet/100 meters at 4K. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight.

Resolutions up to 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.

The GTB-UHD-HBT supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio. TOSLINK Optical Digital Audio can be sent from the display side back to the source and analogue audio can be extended from the source side to the Receiver.

This product provides RS-232 and 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit.

Gefen Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display.

Extends HDMI, RS-232, and 2-way IR over a single CAT-5e/CAT-6A:

• 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0, 8-bit), up to 330 feet/100 meters
• 4K Ultra HD (3840 x 2160 @ 30Hz, 4:4:4, 8-bit), up to 330 feet/100 meters
• 4K Cinema (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4, 8-bit), up to 330 feet/100 meters
• 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters
• 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters

HDMI Features Supported:

• HDMI 2.0
• HDCP 2.2 and 1.4
• 12-bit Deep Color
• LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master
• Audio™ pass-through
• 3DTV pass-through
• CEC pass-through
• Lip Sync pass-through

Key Features:

• IR extension from Sender to Receiver and from Receiver to Sender
• Gefen Bi-Directional POL feature provides power to the Sender or the Receiver unit over the link cable - only one side will need external power
• Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
• Advanced EDID Management
• Firmware updatable via RS-232
• Locking power connector
• Surface mountable

• IR extension from Sender to Receiver and from Receiver to Sender
• Gefen Bi-Directional POL feature provides power to the Sender or the Receiver unit over the link cable - only one side will need external power
• Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
• Advanced EDID Management
