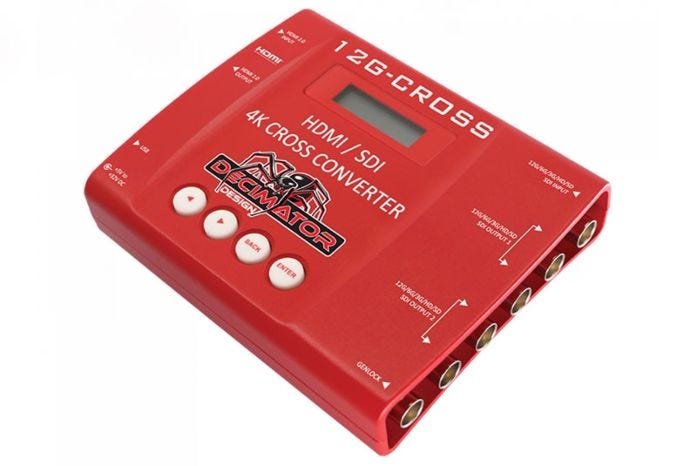

Decimator Design 12G-CROSS 4K Cross Converter
The 12G-CROSS is a small (4.2” x 5.1” x 1.2”) low power portable converter encased in a solid robust aluminium case and does not contain a noisy fan. Allowing it to be used in almost any environment.
Allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine.
The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input.
The 4K scaling engine can scale and/or frame rate convert between any of the following 57 formats:
- (3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI
- (3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI
- (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI (A or B)
- 1920 x 1080i60/59.94/50 via HDMI or HD-SDI
- (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
- (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI
- 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
- 1280 x 720p24/23.98 via HD-SDI
- 720 x 480p59.94 or 720 x 576p50 via HDMI
- 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI
That is an amazing 3249 possible format conversions!
- The audio pairs in the SDI and HDMI outputs can be rearranged as required.
- Includes 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier.
- The 12G-CROSS is a truly portable product that incorporates an easy-to-use LCD screen and button control system. This gives easy access to the outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting.
This unit also includes:
- USB port for control and firmware updates
- Metal Thread Locking DC Power Socket
- Power Supply and USB Cable
- 4K scaling engine can be driven by either the SDI or HDMI input and can be locked to either the SDI, HDMI or Genlock input
- Horizontal and/or vertical image flipping via the built in 4K scaler
- Convert between level A and level B 3G-SDI
- 1x Decimator Design 12G-CROSS 4K Cross Converter
- 1x USB port for control and firmware updates
- 1x Metal Thread Locking DC Power Socket
- 1x Power Supply and USB Cable
| SDI Formats | 12G:SMPTE 2048-1/2036-1@11.88 and 11.868Gb/s • (3840 or 4096) x 2160p@60/59.94/50Hz 6G: SMPTE 2048-1/2036-1@5.94 and 5.934Gb/s • (3840 or 4096) x 2160p@30/29.97/25/24/23.98Hz 3G-A or 3G-B: SMPTE 424M@2.97 and 2.967Gb/s • (1920 or 2048) x 1080p@60/59.94/50Hz HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s • 1920 x 1080i@60/59.94/50Hz • (1920 or 2048) x 1080p/psf@30/29.97/25/24/23.98Hz • 1280 x 720p@60/59.94/50/30/29.97/25/24/23.98Hz SD:SMPTE 259M@270Mb/s • 720 x 576 (PAL) • 720 x 480i59.94 (NTSC) |
|---|---|
| LCD / Button Menu Options |
|
| HDMI Formats |
|
| Inputs |
|
| Outputs |
|
| Power |
|
| Dimensions | 106mm x 130mm x 31mm (4.2” x 5.1” x 1.2”) |
