Portkeys BM7II DS 2200nit Wide Color Gamut Wireless Camera Control Monitor
Availability:In stock
Cat No.
52393
SKU
PK-BM7-II-DS
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£919.20
£766.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Portkeys BM7II DS 2200nit Wide Color Gamut Wireless Camera Control Monitor
Wireless Camera Control
Wireless Camera Control:KOMODO | V-RAPTOR | BMPCC4K | BMPCC6K | BMPCC 6K Pro SONY: A7MⅢ | RX0 | A1 | A9Ⅱ | A7C | FX3 | FX30 | RX10 | A7SⅢ | A7M Ⅳ
Wireless control does not mean wireless video transmission, a video signal cable still needs to be connected during video transmission
Custom JPG Picture Freeze Frame
After capturing an image, it can be compared with real-time video by semi-transparent image superposition
Note: Must be a 16:9 1920×1080 jpg image

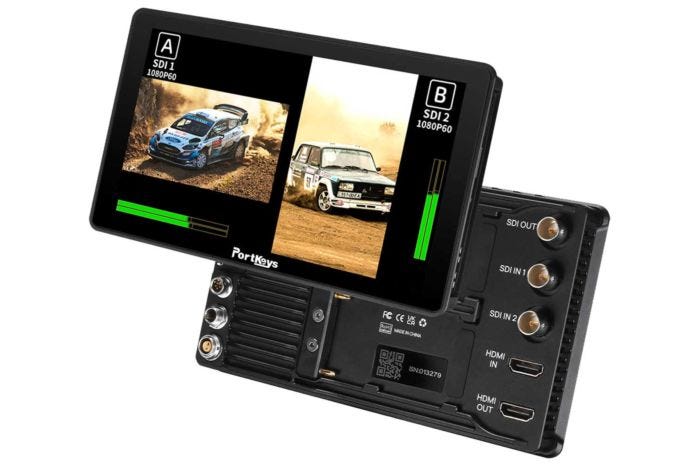

Split Screen Monitoring
Two screens can load the same 3D LUT file, support dual horizontal/dual vertical/left horizontal and right vertical/left vertical and right horizontal/ left horizontal and right vertical cropping of the same source
Note: Left and right screens can be flipped individually and mirrored
3D LUT HDMI Output
HDMI、3G-SDI can output video after loading 3D LUT
Wired Control Tilta Nucleus-N/M Motors
Compatible with Tilta Nucleus-N/M Motors and display the wireless follow the focus scale
CNC Aluminum Alloy All-metal Shell
With fast heat dissipation and high durability
Wired control of RED cinema camera
DSMC3 EXT control line (optional) to control DSMC3
DSMC2 CTRL control line (optional) to control DSMC2
Anamorphic Lens Calibration
Supported Ratio: 1.00X/1.33X/1.42X/1.50X/1.60X/1.66X/1.85X/2.00X/2.35X
User-defined adjustment range: 0.25X-4.00X
HDMI to SDI Output
Built-in signal conversion, no external signal conversion box required
False color and ARRI False color
Customisable overexposure and underexposure IRE scales
Brightness and RGB Signal Detection Before/After Loading 3D LUT
Loading 3D LUTs for better picture quality and more intuitive monitoringMultiple Ways of Operating
Both button scroll wheel and touch screen, more flexibility in operation
Various Interfaces
Video input 3G-SDI×2/HDMI×1, video output 3G-SDI×1/HDMI×1, 3.5mm headphone jack×1
Customized Peaking Range(Peaking Frame)
Peaking perfectly avoids rendering camera parameters
Custom Rectangular Image Crop
Easily and clearly monitor the details of your images
Factory Color Calibration-709 colour gamut with X-Rite 1D hardware
More accurate color calibration and more intuitive image monitoring
Key Features:
- Wireless Camera Control
- Custom JPG Picture Freeze Frame
- Split Screen Monitoring
- 3D LUT HDMI Output
- Wired Control Tilta Nucleus-N/M Motors
- CNC Aluminum Alloy All-metal Shell
- Wired control of RED cinema camera
- Anamorphic Lens Calibration
- HDMI to SDI Output
- False color and ARRI False color
- Split Screen Monitoring
- Custom JPG Picture Freeze Frame
- Wireless Camera Control
| Basic Parameters | ||
| Screen Size | 7" | |
| Colour Gamut | 85% P3 | |
| Resolution | 1920 x 1080 | |
| Viewing Angle | 85/85/85/85 | |
| Dimension | 179.3 x 106.8 x 31 mm | |
| Material | Alluminium Alloy | |
| Contrast Ratio | 1000:1 | |
| Weight | 445g | |
| Brightness | 2200nit | |
| Fan | Yes | |
| Maximum Power | 15W | |
| Input Voltage | 7-24V | |
| Antenna | 2.4G | |
| Audio Output | 3.5mm Headphone Jack | |
| Power Input/Output | 2 Pin LEMO/DC 5.5*2.1 | |
| Support Battery Model | Sony NP-F970/F960/F750/F550 | |
| USB-A | Upgrade Firmware/Load LUT | |
| Camera Control Port | Focus Puller/ Camera Remote | |
| Signal Conversion | HDMI to SDI HD Output | |
| Video Signal Output | 3G SDI, HDMI | |
| Video Signal Input | 3G SDI x 2, HDMI | |
| Software Function |
||
| Peaking | Zebra | False Colour |
| Waveform(All) | Vector Scope | Luma Histogram |
| RGB Histogram | Luma Waveform | RGB Waveform |
| Audio Meters | HDR(HLG) | 3D LUT |
| Time Code | Rectangle Crop | Image Capture |
| Image Overlay | Check Field | Guides |
| Cross Hair | Grids | Camera Recording |
| Dual Screen | Brightness | Contrast |
| Chroma | Sharpness | Tint |
| 3D LUT SDI Output | Battery(Level)Display | Display Flip |
| Hardware Colour Correction | Colour Temperature | Custom RGB |
| Anarmorphic | 3D LUT HDMI Output | Custom Peak Area |
| Wireless Camera Control | ARRI False Colour | HDMI to SDI Output |
| Fan Adjustable | ||
| Control Tilta Motor and Cursor Display | ||
| 1080p Refresh Rate Reduced to 1080i | ||
| Waveform optional detection of 3D LUT data before and after loading | ||
| * Monitor does not have 3D LUT data before and after loading | ||
| HDMI Signal | 1920x1080p@23.97Hz,24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz 1920×1080psf@23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz 1920x1080i@50Hz,59.94Hz, 60Hz 1280x720p@50Hz,59.94Hz, 60Hz 720x576p&720x576i@50Hz 720×480p&720x480i@50Hz, 59.94Hz, 60Hz |
|
| SDI Signal | 1920×1080p@50fps, 59.94fps, 60fps 1920×1080p@50Hz,59.94Hz, 60Hz, YUV422 1920×1080p@23.98Hz, 24Hz,25Hz, 29.94Hz, 30HZ YUV444/YUV422 1920×1080psf@23.98Hz,24Hz,25Hz, 29.97Hz, 30HZ YUV444/YUV422 1920x1080i@50Hz,59.94Hz, 60Hz YUV444/YUV422 1280×720p @50Hz,59.94 Hz, 60Hz YUV444/YUV422 |
|
