Kramer C-5BM/5BM-100 30.5m 5 BNC RGBHV
Availability:In stock
Cat No.
1698
SKU
C-5BM/5BM-100
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. If you require urgent collection and the product is showing in stock , please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. If you require urgent collection and the product is showing in stock , please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£150.00
£125.00
-
Price Match
Request here
Product Information

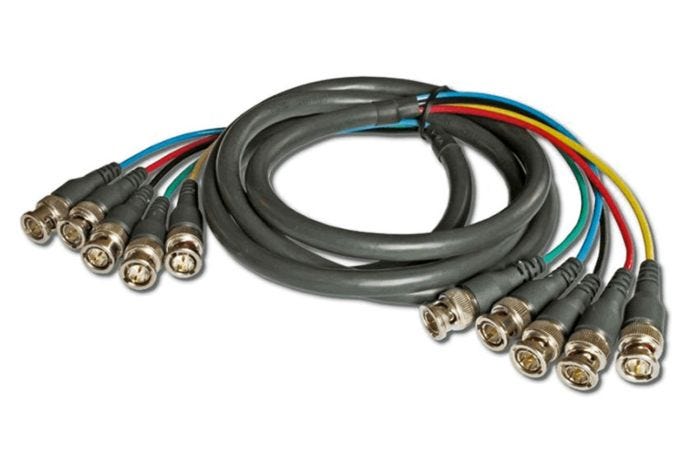

Kramer's 5BM series cables are constructed of 5 mini coax cables in a single jacket with 75 ohm BNC connectors at each end. They offer outstanding quality, durability, and high performance for any RGBHV video signal application.
- High Quality Connections
- Varied Lengths Available
Coax Center Conductor: 28 AWG 7/36 tinned copper.
Coax Jacket Colors: Red, green, blue, yellow, black.
Dielectric: Foam polyethylene.
Outer Jacket Color: Dark Gray w/white lettering.
Outer Jacket: PVC.
Shield: 90% braid 38 AWG tinned copper.
Diameters
Center Conductor: 0.015 inches, 0.38mm.
Dielectric: 0.063 inches, 1.6mm.
Individual Coax: 0.108 inches, 2.75mm.
Outside Diameter: 0.362 inches, 9.2mm.
Electrical
Attenuation (dB/100 ft.): -0.6 dB @ 1MHz.
-1.4 dB @ 5 MHz.
-2.1 dB @ 10 MHz.
-4.7 dB @ 50 MHz.
-6.8 dB @ 100 MHz.
-9.2 dB @ 180 MHz.
-14.2 dB @ 400MHz.
-20.1 dB @ 750MHz.
-23.8 dB @ 1000MHz.
Capacitance: 18.3pF per foot, 60pF per meter.
DC Resistance: 72.2? per 1000ft, 237? per km.
Impedance: 75?
Temperature: - 4 ° to 167° Fahrenheit, - 20° to 75° Celsius.
Velocity of Propogation: 78%.
